| 产 品 规 格 书 | |||||
|

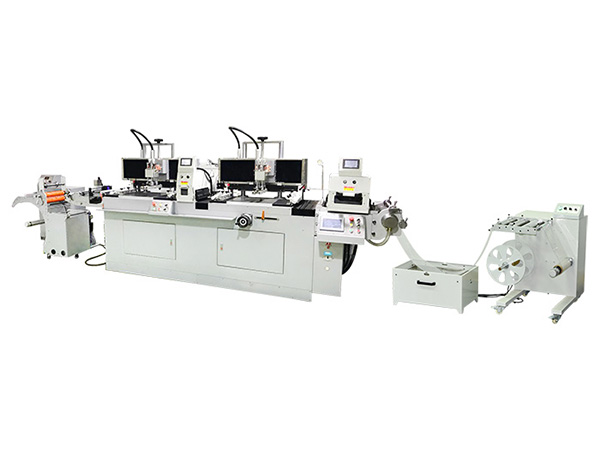

j9九游会·产品名称：WL-350S高速双色丝印机 Product Name:Pneumatic Type Single-Color Screen Printing Machine WL-350S |
|||||
| 一、标准配置(Standare Accessoriesw) | |||||
| 序号No. | 名称(Name) |
技术规格 (Specification) |
单位 Unit |
备 注 Remark |
|
| 1.1 | 送料机（Unwinder） | 1 | Set | ||
| 1.2 | 印刷主机(Mian Machine) | 1 | Set | ||
| 1.3 | 双复卷机（Twin Rewinder) | 1 | Set | ||
| 1.4 | UV机 | 2 | Set | ||
| 1.5 | 网框(Set Screen Frame) | 4 | Set | ||
| 1.6 | 刮墨刀(Scraper) | 6 | Set | ||
| 1.7 | 回墨刀(Ink-Rrturn Blade) | 6 | Set | ||
| 1.8 | 工具箱(Tool Box) | 1 | Set | ||
| 1.9 | 说明书(Operation Manual) | 1 | Set | ||
| 二、规格参数(Specifications) | |||||
| 序号No. | 名称(Name) |
技术规格 (Specification) |
单位 Unit |
备注 Remark |
|
| 2.1 | 网框尺寸(Screen frame size) | 550*700 | mm | 最大尺寸 | |
| 2.2 | 最大印刷面积(Max.print area) | 330*450 | mm | ||
| 2.3 | 最大纸宽(Max.paper Width) | 350 | mm | ||
| 2.4 | 最大拉纸(Max.paper Forward) | 450 | mm | ||
| 2.5 | 印刷速度(Printing Speed) | 0-9000 | rpm | ||
| 2.6 | 主机尺寸（L×W×H）(Machine Size) | L.**×w.1100×h.1700 | mm | ||
| 2.7 | UV机尺寸（L×W×H）(Drying Box Size) | 1865*940*2000 | mm | ||
| 2.8 | 主机重量(Weight of the host) | 净重(Net Weight) | 1200 | kg | |
| 装箱(Gross Weight) | 1700 | kg | |||
| 2.9 | UV机重量(Drying Box weight) | 净重(Net Weight) | 600 | kg | |
| 装箱(Gross Weight) | 950 | kg | |||
| 2.10 | 电源马达(Power supply motor) | 主机电源(Host power supply) | 220 | V | |
| 烤箱电源(Drying Box power supply) | 380 | V | |||
| 烤箱功率(Drying Box power) | 10 | kw | |||
